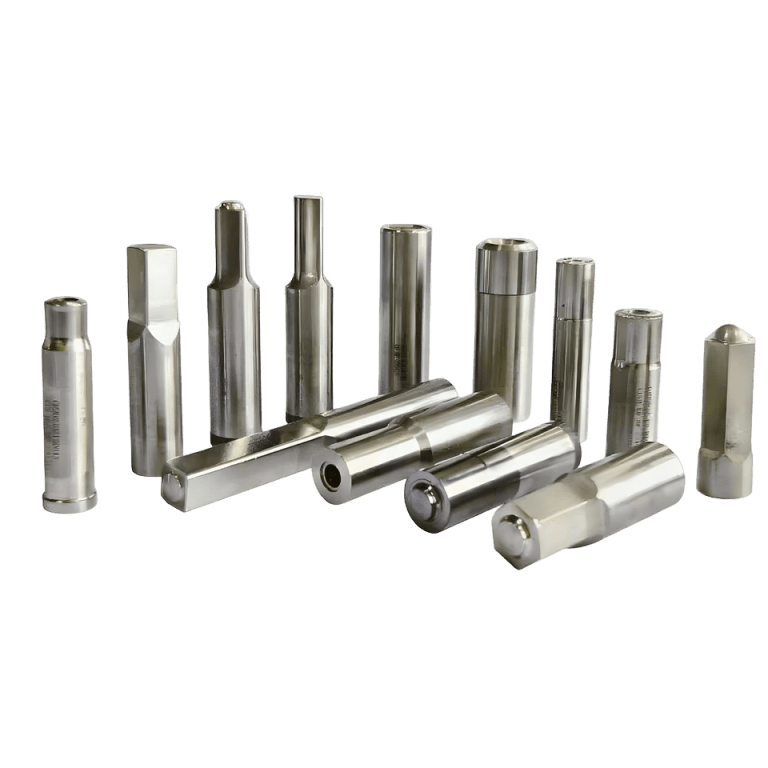

Punch pins (also known as punches) are critical components in cold heading and fastener forming processes. Their performance directly affects product quality, production efficiency, and tooling cost.
However, punch pin breakage is one of the most common issues in production. Understanding the root causes and applying the right solutions can significantly extend tool life.
1. Material Issues
- Use of low-quality tool steel or carbide
- Incorrect material selection for application
- Poor internal structure (impurities, uneven carbide distribution)
2. Improper Heat Treatment
- Excessive hardness → brittle fracture
- Insufficient hardness → deformation and early failure
- Uneven heat treatment causing internal stress
3. Design Defects
- Sharp corners causing stress concentration
- Insufficient strength at weak sections
- Incorrect head or tip geometry
4. Misalignment During Operation
- Misalignment between punch and die
- Machine setup errors
- Worn guide components
5. Overloading
- Exceeding designed forming force
- Processing harder material than specified
- Multi-stage forming without proper load distribution
6. Surface Wear and Coating Failure
- Lack of coating or poor coating quality
- High friction during forming
- Adhesion and galling
By improving material selection, optimizing design, controlling heat treatment, and ensuring proper operation, manufacturers can significantly reduce breakage and improve production efficiency.
If you are facing frequent punch pin failure or need customized tooling solutions, feel free to contact us. We provide high-precision punch pins with optimized design, premium materials, and advanced coatings.
